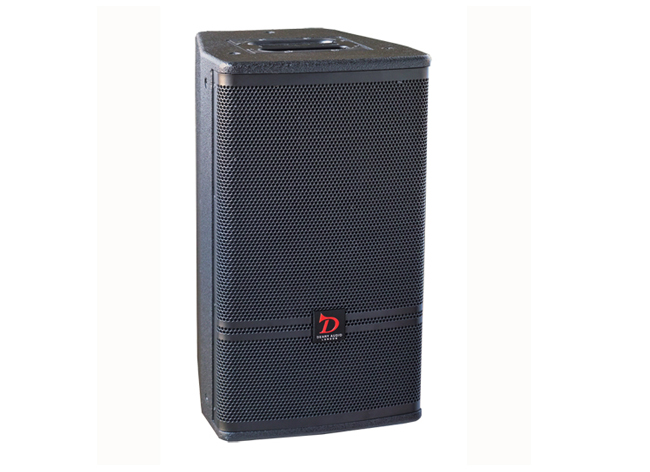

DM-10
10 inch two-way speaker
main feature:
  10 inch lightweight high power differential drive woofer
  1.4 inch ring BU diaphragm compression tweeter
  Optional 15 mm high density board with black abrasion resistant paint finish on the surface; 15mm birch plywood, saffron wood surface finish, 80° x 70° coverage angle, uniform and smooth axial and offset Axial response
  Avant-garde appearance, 16 steel fence with dust-proof mesh
  Precisely designed frequency divider optimizes power response and vocal part IF performance
  A jack for mounting on a pole
  Rotary DEARY square logo for easy use
  application:
KTV sound reinforcement
Nightclubs, bars and other entertainment venues sound reinforcement
Use with subwoofers for better results
Product Description

System:
System Type: 10 inches, 2 frequency, low frequency reflection
Frequency range (-10 dB) 1:72 Hz - 20 KHz
Frequency Response (±3 dB) 1:90 Hz - 20 KHz
Sensitivity 1: (1w @ 1m) 95 dB
Rated impedance: 6.8 ohms
Maximum sound pressure level output: 122 dB (peak: 128 dB)
Rated input power 2: (continuous/music signal/peak) 300 W/600 W/1200 W
Coverage angle: 80° x 70° (H x V)
